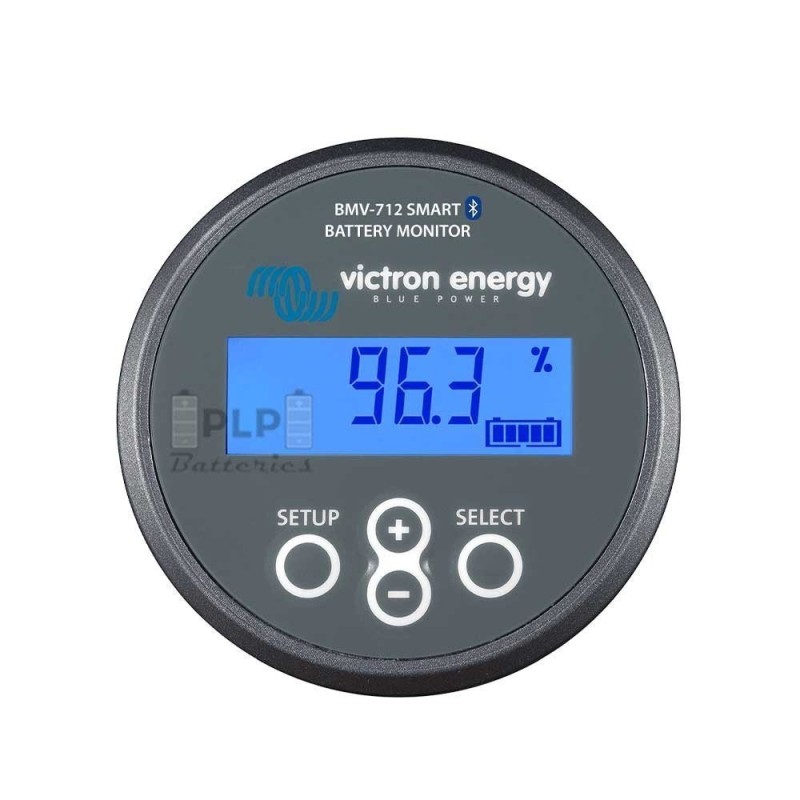

Battery Monitor BMV-712 Smart

Marca:

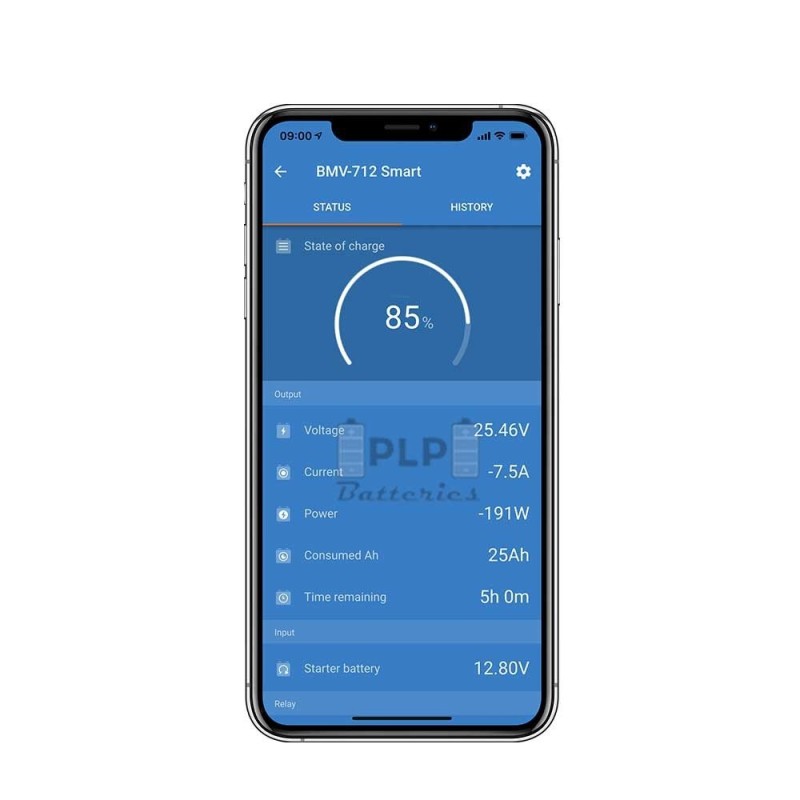

With its integrated Bluetooth, the BMV Smart is ready for the Internet of Things (IoT) era. Because most other Victron Energy products are Bluetooth enabled, wireless communication between products simplifies system installation and improves system performance.

€179.90

Tax included

Qty:

Last items in stock

Not sure which option to choose?

Start with our Professional Diagnosis.
A technician will analyze your battery and give you a clear report so you can decide risk-free. If you go ahead with the repair, the diagnosis cost is FREE*.

Request Diagnosis

See How It Works

Battery Monitor BMV-712 Smart

Mid-point voltage monitoring A bad cell or battery could destroy a large and expensive battery bank. When batteries are connected in series, a timely alarm can be generated by measuring the mid-point voltage. Please refer to the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximise the lifetime of lead-acid batteries connected in series. Current consumption: 0.7Ah per month (1mA) 12V and 0.6Ah per month (0.8mA) 24V. In particular, Li-Ion batteries are virtually depleted of their capacity when they are discharged to the low voltage disconnection level. After low voltage disconnection of the cells, the capacity reserve of a Li-Ion battery is approximately 1Ah per 100Ah capacity. The battery will be damaged if the capacity reserve remaining in the battery is removed. A residual current of 10mA, for example, can damage a 200 Ah battery if the system is left in a discharged state for more than 8 days.

Other functions

-Voltage, current, power, amps

-Time consumed and state of charge of the battery

-Remaining autonomy at current discharge rate.

-Programmable visual and audible alarm.

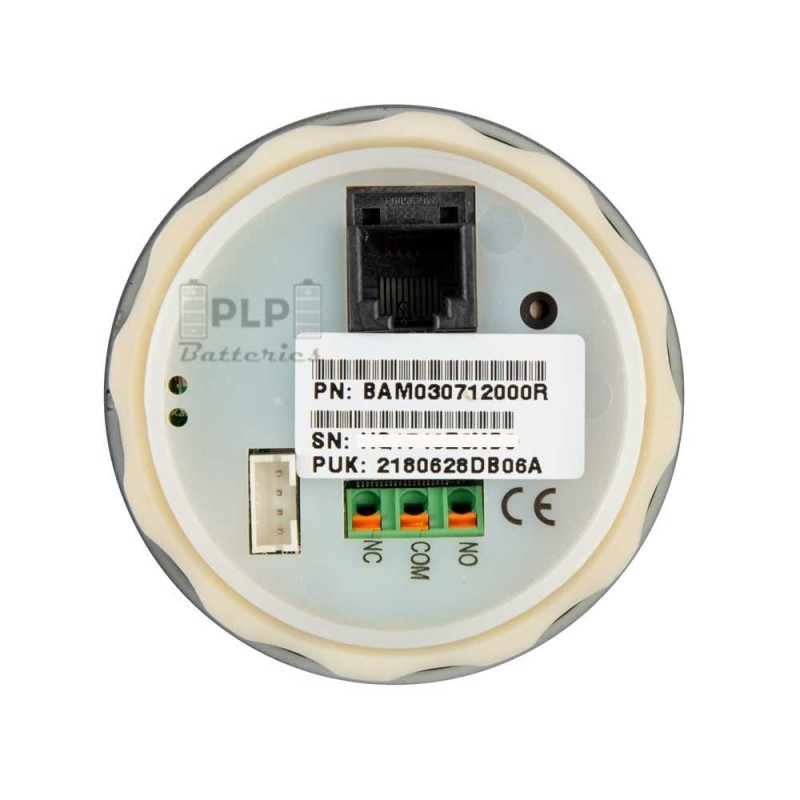

Programmable relay, to disconnect non-critical loads or to start a generator if necessary.

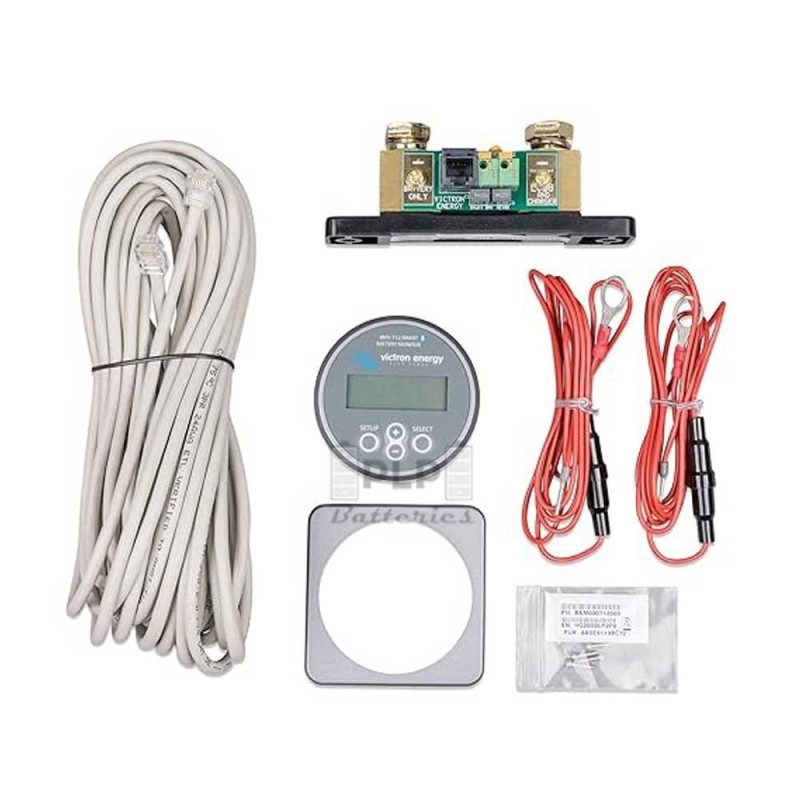

-500 amp quick connect shunt and connection kit.

-Selectable shunt capacity up to 10,000 amperes -Ve.

-VE.Direct communication port

Stores a wide range of historical data that can be used to assess usage patterns and battery condition -Wide voltage range up to 10,000 amps

-Wide input voltage range: 6.5-70V

-High current measurement resolution of 10 mA (0.01A)

Additional input for measuring voltage (from a second battery), temperature or mid-point voltage and corresponding alarm and relay settings.
